How Do Diamond Wire Saws Work?

The Core Components of a Diamond Wire Saw System

1. Diamond Wire

The cutting wire is a high-tensile steel cable fitted with diamond-impregnated beads or coated with fixed diamond abrasive. The diamonds perform the actual cutting action by grinding away material at a microscopic level.

There are two main types:

• Fixed diamond wire – Diamond particles permanently bonded to the wire
• Slurry wire systems – Use loose abrasive slurry (common in older wafer slicing systems)

Modern systems increasingly rely on fixed diamond wire for improved precision and efficiency.

2. Drive System

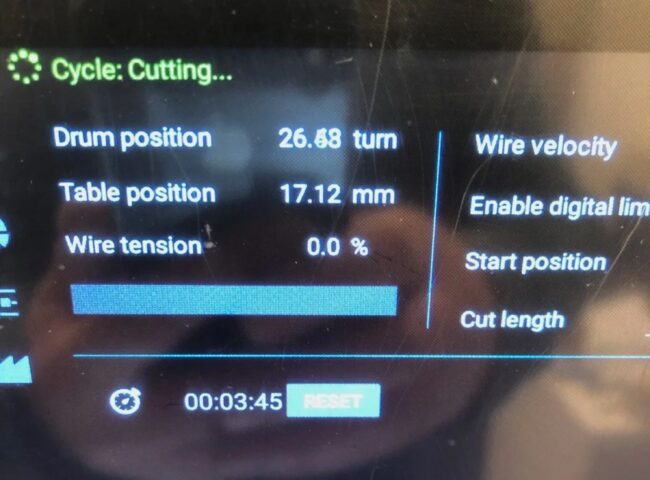

A motorized drive wheel moves the diamond wire continuously in a loop at controlled speeds. Cutting speed and feed rate are precisely adjusted based on the material type and thickness.

3. Tensioning System

Proper tension is critical. Diamond wire saws operate under carefully calibrated tension to ensure straight, accurate cuts and to prevent wire breakage.

4. Guide Rollers and Alignment System

Rollers guide the wire and maintain consistent alignment throughout the cutting process. Proper alignment ensures uniform kerf width and high surface quality.

The Diamond Wire Cutting Process

Step 1: Wire Motion

The motor drives the diamond wire at high speed, typically several meters per second, depending on the application.

Step 2: Abrasive Grinding Action

As the diamond wire moves against the material, industrial diamonds grind away tiny particles. Unlike toothed blades that shear material, diamond wire cutting works through controlled abrasion.

Step 3: Material Removal

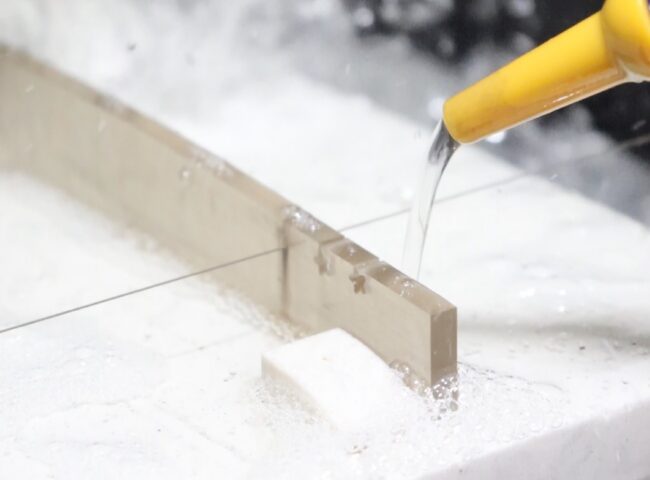

The material is gradually removed in the form of fine particles or slurry. Cooling fluid or water is often used to:

• Reduce heat
• Flush debris
• Extend wire life
• Improve cut quality

Step 4: Controlled Feed Rate

The material is fed slowly into the moving wire (or vice versa). Feed rate is carefully controlled to maintain optimal cutting efficiency and surface finish.

Why Diamond Wire Saws Are So Effective

Diamond wire saws work efficiently because:

• Diamonds are the hardest known material, allowing them to cut silicon, sapphire, concrete, granite, and steel
• The continuous loop design allows for cutting very large or thick materials
• Minimal vibration reduces microcracking in brittle materials

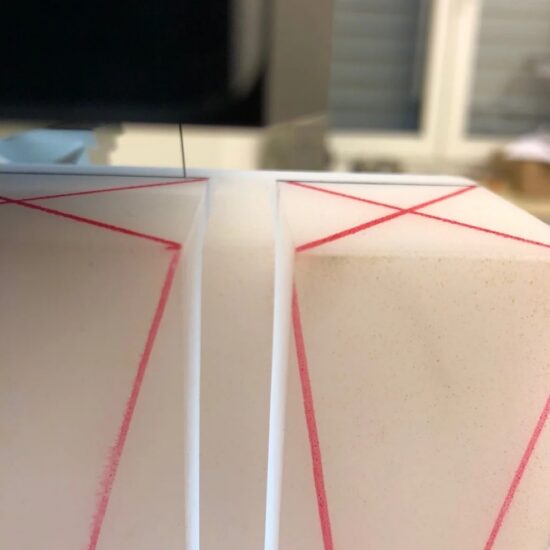

• Narrow kerf width reduces material waste
• Precise tension control ensures straight, uniform cuts

Semiconductor + Solar Manufacturing

Diamond wire saw technology is commonly used for slicing silicon ingots into ultra-thin wafers for semiconductor and solar applications. Fixed diamond wire systems improve surface finish, reduce slurry waste, and lower operational costs. These advantages translate to higher wafer yield, improved production efficiency, and more consistent manufacturing performance.
